- Description
Description
AV3602
Aspes 5700W Ceramic Hob, 5cm, 59cm, 52cm, Black Glass, Touchcontrol, 3Z, Triple Crown
Description

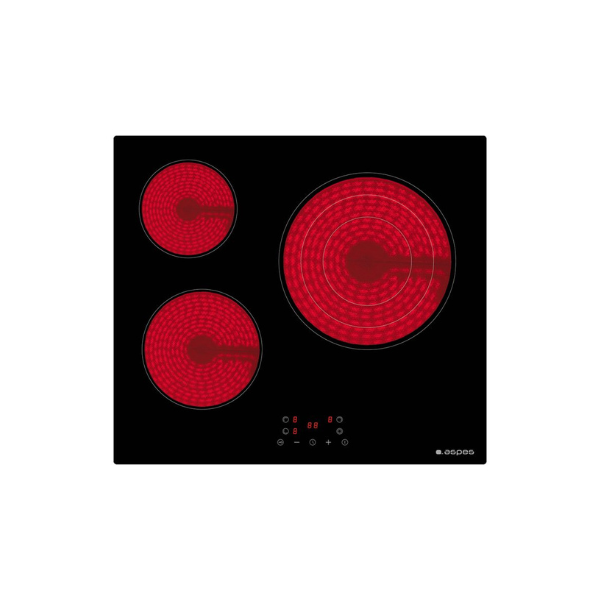

Aspes AV3602 ceramic hob, 50cm wide.
This 3-zone hob offers a total power of 5700W. One of the zones has a triple crown, making it suitable for larger-diameter cookware.
Black glass aesthetic and a touch control system with 9 cooking power levels and functions for maximum performance and safety.
Dimensions: 50 x 590 x 520 mm
Dimensions required for installation: 560 x 490 mm
Learn more about this model:
– The hob offers an Auto-Off function for added safety. When it detects that no changes have been made to an activated zone for an extended period of time, it will automatically shut off.
TECHNICAL SPECIFICATIONS
FEATURES
Hob color: Black glass
Cooking levels: 9
Finish: Beveled
Control system: Touch
Installation type: Built-in
Triple crown: Yes
Cooking zones: 3
Hob type: Ceramic
DIMENSIONS AND WEIGHTS
Packaging height: 105 mm
Product height: 50 mm
Packaging width: 570 mm
Built-in width: 560 mm
Product width: 590 mm
Zone 1 diameter: 190 mm
Zone 2 diameter: 155 mm
Zone 3 diameter: 280 mm
Zone 3 diameter (medium): 210 mm
Zone 3 diameter (small): 140 mm
Packaging depth: 645 mm
Built-in depth: 490 mm
Product depth: 520 mm
Gross weight: 9 kg
Net weight: 8.2 kg
Volume: 0.0386 m3
PERFORMANCE
Frequency: 50 Hz
Zone 1 power: 1800 W
Total hob power: 5700 W
Zone 2 power: 1200 W
Zone 3 power (min.): 1050 W
Zone 3 power: 2700 W
Voltage (max.): 230 V
FUNCTIONS
Auto safety shut-off: Yes
Control lock: Yes
Auto safety shut-off (time/duration): 120 min
Residual heat indicator: Yes
Home automation system: No
Timer: Yes
Timer (time/duration): 99 min
